Technical Specification:

Element Range                           : Na, K, & Li : 0.1-100 ppm, Ca : 15-100 ppm, Ba : 50-1000 ppm

Sensitivity                                  : Na: 0.5 ppm, K: 0.5 ppm, Li: 0.5 ppm, Ca: 15 ppm, Ba: 50 ppm

Filter Selection                            : Automatic by soft touch key

Resolution                                  : 0.1 ppm

Detector                                    : Silicon Photodiode

Linearity                                    : Better than 2%

Unit of Measurement                    : ppm

Reproducibility                            : <1% Coefficient of Variation (CV) for 20 consecutive samples using 10 ppm Na set as

  maximum standard “Curve Fitting Accuracy <1% error when 3 ppm Na/K and 5 ppm Li

  are set as maximum standards.

Quick Calibration Facility          : With Highest standard

Method                                      : 40 method with View, Print & Delete facility

Calibration                               : Up to 05 standards per Elements with Curve Fitting Software in-built with

  Instrument. (Automatic calculation of curve coefficient)

Measurement of Sample           : Multi elements in single aspiration OR one by one.

Ignition System                        : Automatic

Flame Type                                : LPG & Dry Oil Free Air

Auto Flame ON / OFF Detection      : Yes Audio and Visual Alarm

Display                                      : 20 x 4 Line Alphanumeric LCD with Backlit

Keypad                                      : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

Gas Control                                : Adjustable with Regulator

Atomizer                                    : Axial Flow Type

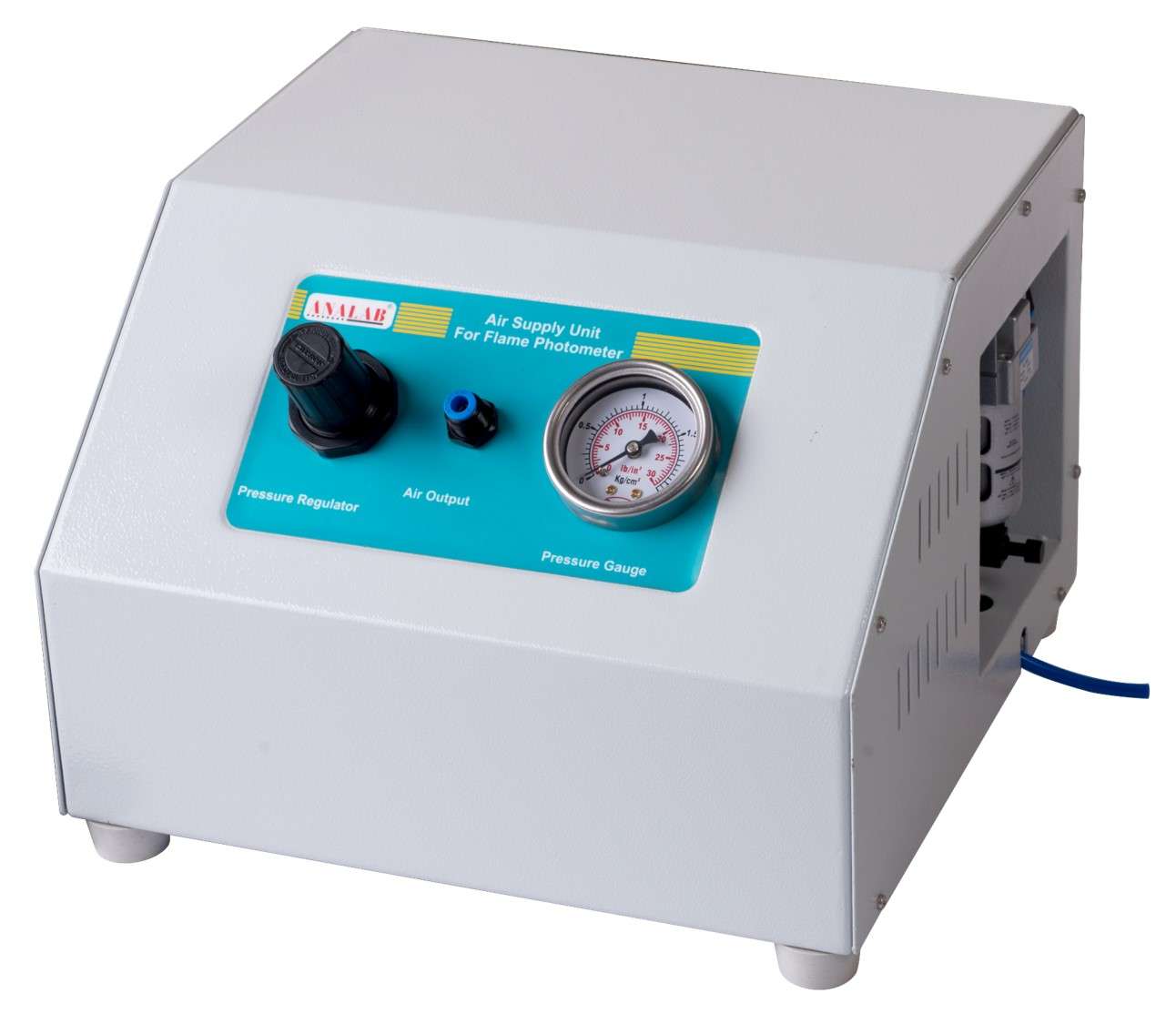

Air Supply Unit (Separate Unit)       : Consist of Air Compressor, Pressure Gauge, Pressure Regulator, Moisture Filter,

  PU Tube (2 Meters) and Air filter with moisture absorbent catalyst

Error Messages                         : “LPG On/Off”, “Wrong Standard”, “Home Detection”, “Memory Full”, “Flame

  Not ON”, “Value Out of Limit”, “Do Warm-up” & “In Correct Standard”.

Calibration Data Storage               : Non Volatile Memory which can store, print & view report date & time, company name,

  calibration date & time, calibration done by, standards results, calibration one on,

  instrument serial number, instrument ID etc.

Searching of data                        : with record number, batch number, Date and by scrolling

Report Formation                        : As per GLP Compliance

Analysis Data Storage                   : More than 750 analysis data can be stored with corresponding calibration report of

  lower & higher standard, company name, analysis date & time, record number, batch /

  ID number, sample name, user name, result, dilution factor, analysis done on,

  instrument serial number, instrument ID, method number, etc. Secondly, analysis data

  can print directly from analysis mode without saving analysis data in instrument.

Password Protection                 : Date & time, calibration mode & delete stored analysis data

Printer Interface                          : Centronics Parallel Port / Serial (RS-232 C) Port

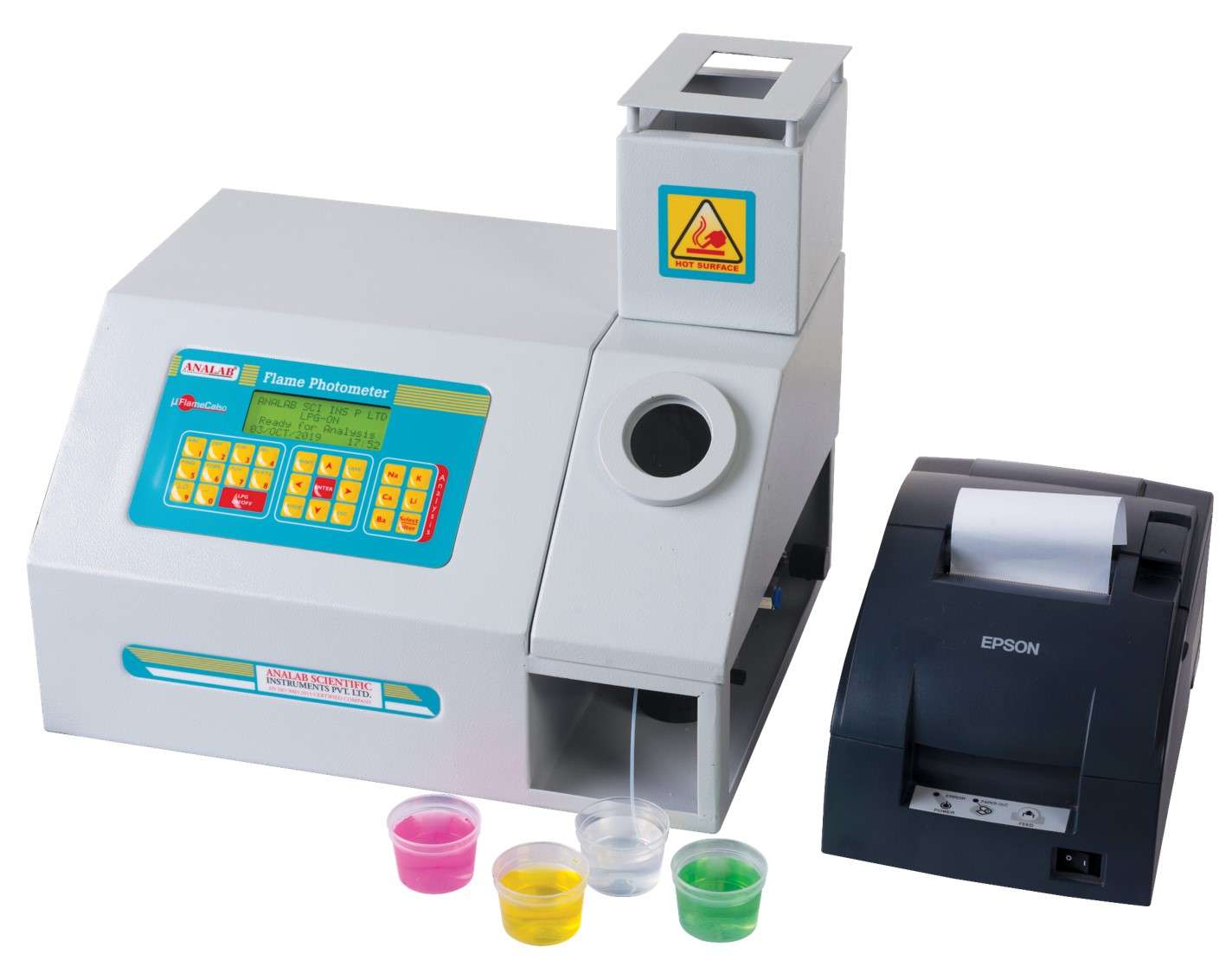

Printer                                       : 40 / 80 Column Dot Matrix Printer (Printer have to procure optionally)

Power Supply                              : 230 VAC ± 10%, 50 Hz
