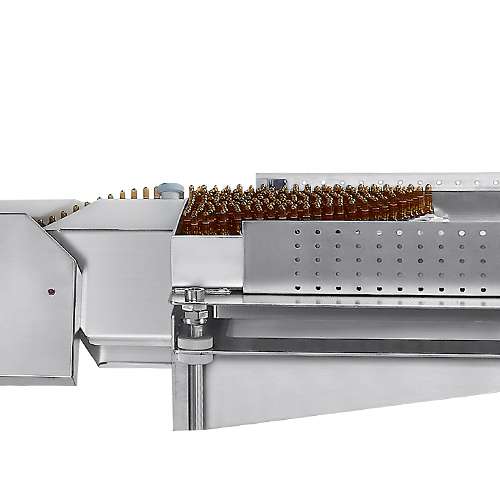

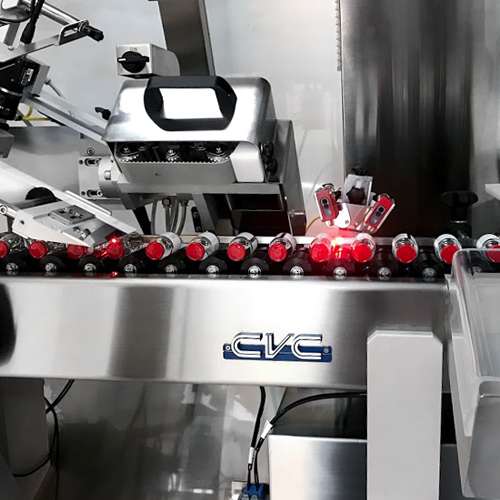

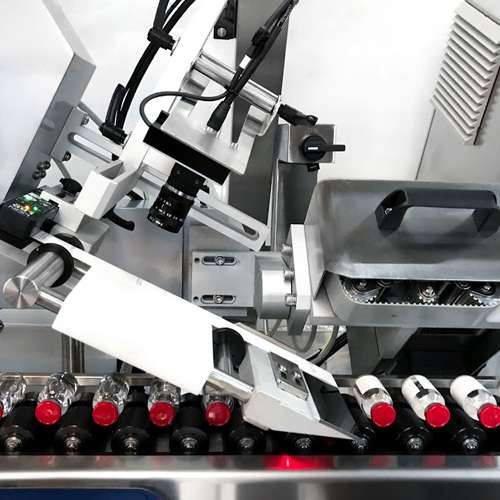

The CVC 352 Horizontal Ampule/ Vial Labeler is built to automatically apply pressure sensitive labels onto round containers that will not convey upright on a conveyor. STANDARD FEATURES • Application to cylindrical containers • Self-Set Auto Adjusting Control System • Dual horizontal feeders or vertical loading system along with roller conveyor enable to handle thin or unstable containers • The labeling head driven by servo motor enhances the production speed and accuracy • 6" touch screen control display guides operator through the SelfSet™ process, labeler operation and continually displays information about the job in process. (PLC Controlled) AVAILABLE OPTIONS • Hot Stamp (Lot/Date Coding) • Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics) • Ink Jet Printer • Laser Bar Code Verification (scanner) • Clear Label Sensor • Bottle Rejection System (Air Blow or Cylinder) • Custom Wrap Belts • Loading and Collecting Turn Tables • Infeed and Outfeed Conveyor Extensions • 21 CFR PART 11 compliance
CVC 352 Technical Specifications • Productivity: Up to 300 BPM (based on 1 ml bottle without hot stamping) • Dispense Speed: 70 M/min • Applicable Size: • Label Length: 15-75 mm (5/8" to 3") • Label Width: 15-96 mm (5/8" to 3 3/4") (dependent on label head type) • Bottle Dia.: Ø10-24 mm (1/2" to 1") (dependent on conveyor width) • Bottle Height: 40-70 mm (1 1/2" to 2 3/4") • Power Source: 220V, 50/60HZ, 1PH • Power Consumption: 1,100 VA (5 A) • Air Pressure: 6 bar (87 psi) • Air Consumption: 50 NL/min (1.8 CFM) (for optional reject and Lot/Date printer) • Machine Dimensions: Main Machine Including Conveyor L3,696 x W800 x H2,074 mm (L 12’-2" x W 2’-8" x H 6’-10") • Machine Weight: 605 kg (1,334 lbs) • Noise Level: ≦75dB
