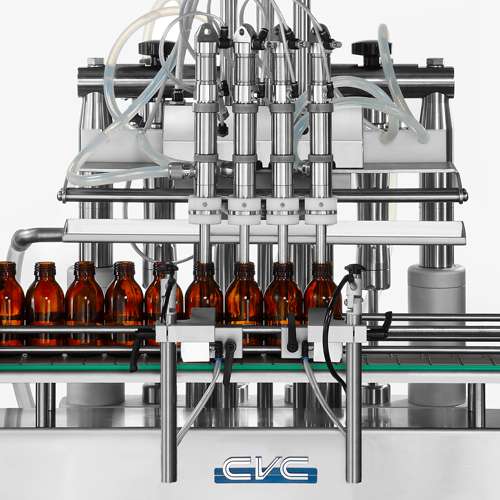

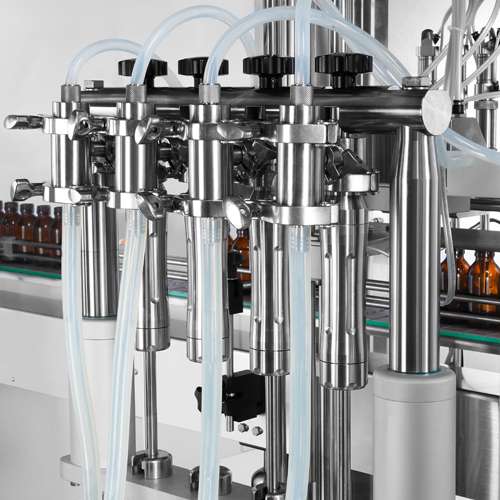

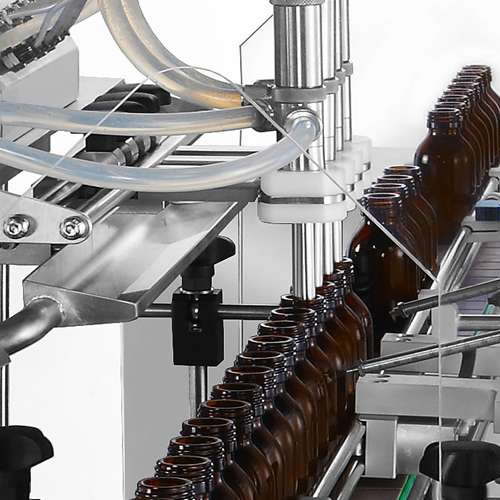

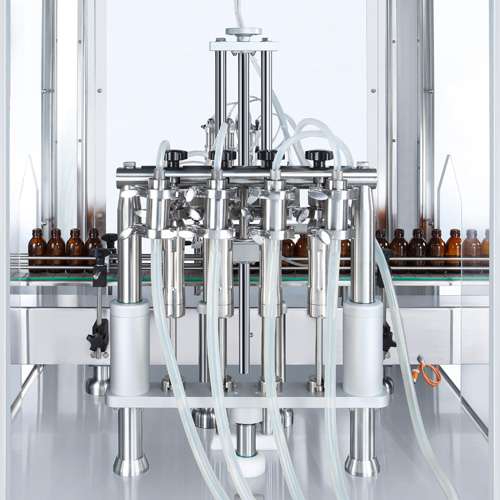

The CVC 3036-4 with in-line configuration are really versatile fillers that easily and inexpensively accommodates to different bottle sizes. STANDARD FEATURES • Diving type filling mechanism: filling nozzles dip into bottles and move up while liquid is being filled. It features less foaming during filling. • 4 filling stations. • Servo driven on both volumetric pistons and nozzles. • Flexible adjustments can meet different product characteristics and bottle shapes. • Various speed settings of liquid filling. • Drip tray. • Capability of recipe storage. • Simple and quick tech mode setup. • Track full / track empty sensors. • Bottle mouth holder design for special applications (require to conduct our factory test). • PLC control with user-friendly operation. • Motorized single lane sanitary conveyor. customized conveyor lengths are available upon request. • Type 304 stainless steel & Type 316L stainless steel construction meets cGMP requirements.. • ISO 9001 certified. AVAILABLE OPTIONS: • Include various sizes of volumetric pistons with fill volume capacity range from 20 ml up to 500 ml • Shut-off nozzles • 1 on-12 manifold pipe • Liquid buffer/storage tanks • Bottle neck holders • Bottle feed screw • Bottle feed screw for handling irregular shaped containers • 21 CFR PART 11 compliance • OPC UA for data collection
CVC 3036-4 Technical Specifications • Max. Productivity: Up to 40 Bottles per Minute(BPM) • Stable Productivity: 10-12 Cycles, 32-40 BPM (base on 100cc filling volume water) • Applicable Bottle: lastic bottles, Glass bottles • Applicable Size: Bottle Dia.: 1 ⅛" to 4 ⅜" (30 to 110 mm) • Bottle Height: 2" to 8 ⅝" (50 to 220 mm) • Mouth Opening (I/D): ⅜" to ⅝" (10 to 15 mm), suitable for ¼"(6.5 mm) nozzle, over ⅝"(15 mm) need to match ½"(13 mm) nozzle. • Power Supply: 220 V/ 50(60) HZ/ 1 PH • Power Consumption: 3100 VA • Air Pressure: 6 bar (87 psi) • Air Consumption: 45 NLit/m (1.6 CFM) • Consumption Machine Dimensions: L 9'-10" x W 3'-5" x H 7'-3" (L3000 mm x W1040 mm x H2200 mm) • Viscosity: 1500 cps • Filling Range & Accuracy: 20 ml ~ 500 ml ± 1% (Need to adapt different volumetric • piston pumps and proper nozzles) • Amp. : About 14 A • Net Weight: 620 kg (1366 lbs) • Noise Level: 70~75 dB
