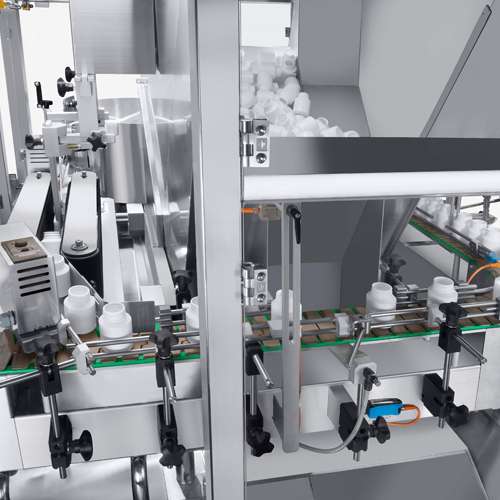

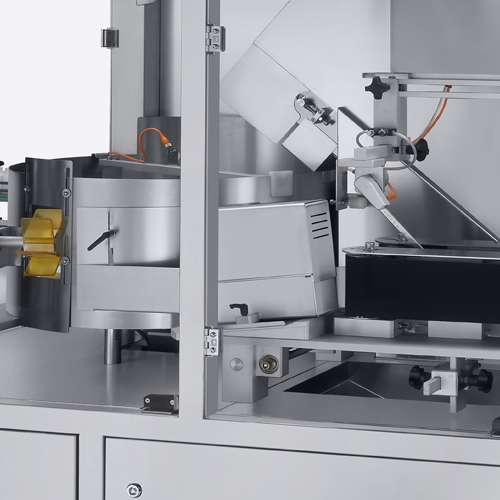

The CVC 1263D Monoblock Bottle Unscrambler & Air Rinser is designed to automatically feed bottles from a bin, place them upright onto conveyor, convey to air rising station and then 180-degree inversion at speeds of up to 120 bottles per minute. The CVC 1263D is built on a Siemens control system including a HMI panel. Options include ionized air rinse with vacuum, fallen bottle sensor with return to bin, low level hopper sensor, tower lamp, Static eliminator bar and customized bottle format change parts. STANDARD FEATURES • Monoblock design with unscerambling and air rinsing saves space • Low level hopper sensor • Bottle backlog sensor at outfeed • Interlocked safety guarding • Type 304 stainless steel bin, frame, enclosure panels. • Type 316 stainless steel contact parts. • ISO 9001 certified. AVAILABLE OPTIONS: • Static Electricity Eliminator • Vacuum block detection assembly • Upside down bottle, fallen bottle reject assembly • Tower lamp • 21CFR Part 11 License
CVC 1263D Technical Specifications Type: U4.D • Power source: 220V, 50 Hz, 1 Phase • Power Consumption: 5 Amp (8.6 Amp when equipped with Air Rinse & Vacuum) • Air Pressure: Minimum 87 psi (ISO 8573-1) • Air Consumption: 4.2 cfm (100 L/min.) on standard machine without optional ionized air rinse assembly. (52.5 cfm when equipped with Air Rinse Assembly) • Consumption Machine Dimensions: L 7'-10" x W 6'-4" x H 7'-0" (L2380 x W1932 x H2140 mm) • Speed: Up to 120 Bottles per Minute (BPM) • Bottle Height: 2" to 7 ⅞" (50mm - 200mm) • Bottle Diameter: 1 ⅛" to 4 ¾" (30mm - 120mm) • Packing Weight: 3638 lbs. (1650 kg) • Machine Weight: 2646 lbs. (1200 kg) • Noise Level: 78 dB
